Converts – DC to AC Mains Power
Type
DC/AC
Outputs – Single

Applications
Home appliances
Power tools
Office equipment
Portable equipment
Vehicles, yachts

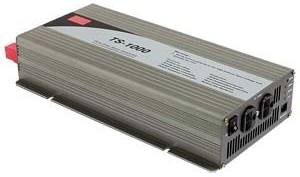

TS-1000 Series

Dimensions: 420*220*88mm (L*W*H)

Features:
True sine wave output (THD<3%)
High surge power up to 2000W
High efficiency up to 92%
Power ON-OFF switch
Standby saving mode can be selected
Front panel indicator for operation status
Thermostatically controlled cooling fan
Battery low alarm, battery low shutdown, over voltage, over temperature, output short, input polarity reverse, over load protections
Built in cooling fan ON-OFF control
Optional monitoring software
Output AC voltage selectable by setting button
100 ~ 120VAC Output version available
Worldwide AC output receptacle options available

Part Number

Input Voltage

Output Voltage

Power (watts)

TS-1000-212D

10.5 – 15VDC

110VAC

1000W

TS-1000-224D

21 – 30VDC

230VAC

1000W

TS-1000-248D

42 – 60VDC

230VAC

1000W

Description
TS-1000 is a high performance true sine wave DC/AC power inverter that uses high frequency circuit topology. With high efficiency up to 92% this dc/ac inverter can provide 1000W continuously and peak load of 1150W for 3 minutes, 1500W for 10 seconds or 2000W surge power for 30 utility cycles.
