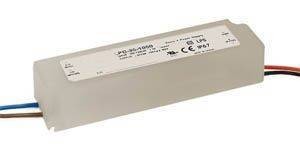

LPC-35 Series – 35W Single Output IP67 Rated LED Lighting Power Supply

Applications Moving signs Backlighting LED-based decorative lighting LED-based architectural lighting LED stage and theatre lighting LED electronic displays
		Features Constant current mode power supply Universal AC input Epoxy encapsulated with IP67 level Withstand 300VAC surge input for 5 seconds Short circuit, over voltage protections Fully isolated plastic case Cooling by free air convection UL1310 Class 2 power unit, passes LPS 100% full load burn-in test Low cost, high reliability
Part Number	Voltage (max)		Current (amps)	Power (watts)
LPC-35-1400	24V		1.4A	34W
LPC-35-1050	30V		1.05A	32W
LPC-35-700	48V		1A	34W

Description
LPC-35 Series are 35W AC/DC enclosed, non PFC design, switching power supplies. LPC-35 models offer constant current mode and high IP rating to protect the electronic components from dust and moisture, making suitable for use in harsh locations. LPC-35 Series possesses high efficiency and can operate between -30°C ~ +70°C using only free air convection. To protect the unit from sudden high surge for unstable AC line, LPC-35 can withstand 300VAC input surge for 5 seconds.
