| Applications Moving signs Backlighting LED-based decorative/architectural lighting LED stage and theatre lighting LED electronic displays |
||||
|
Features Universal AC input / Full range Short circuit, over load, over voltage, over temperature protections Built-in active PFC function UL1310 class 2 unit power Cooling by free air convection 100% full load burn-in test High reliability Suitable for LED lighting and moving sign applications Compliance to worldwide safety regulations for lighting |
|||
|
Part Number |
Voltage (max) | Current (amps) | Power (watts) | |
|
PLC-100-12 |
12V | 5A |
60W |
|
| PLC-100-15 | 15V | 5A |
7560W |
|
|
PLC-100-20 |
20V | 5A | 96W | |
| PLC-100-24 | 24V | 4A |
96W |
|
|
PLC-100-27 |
27V | 4A | 96W | |
| PLC-100-36 | 36V | 3A |
95.4W |
|
|
PLC-100-48 |
48V | 2A |
96W |
|
Description

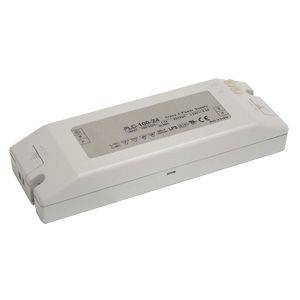

PLC-100 Series are 100W LED Lighting Power Supplies based on earlier PLN models but with a redesign to change the terminal block style of the Input/output connections to be more flexible when wiring and the addition of two access points, with rubber stoppers, to allow the output voltage and current to be adjusted without the need to remove the covers.
