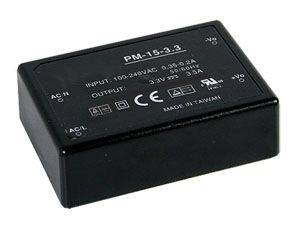

PM-15 Series







Features
Universal AC input/full range
Ultra low profile
Isolation class II
No load power consumption <0.5W
Short circuit, over load, over voltage protections
UL60601-1, IEC60601-1 & TUV EN60601-1 medical safety approved
Cooling by free air convection
Fixed switching frequency at 67KHz

Part Number

Voltage (max)

Current (amps)

Power (watts)

PM-15-3-3

3.3V

4A

12W

PM-15-5

5V

3A

15W

PM-15-12

12V

1.25A

15W

PM-15-15

15V

1A

15W

PM-15-24

24V

0.63A

15.12W


Description
Featuring class II isolation levels they can be equipped into non-patient contact medical equipment and still comply with class B as per EMI regulations. With energy saving and the environment in mind the no load power consumption is lower than 0.5W so that it complies with the requirements for "green mode" power supplies. Standard functions include short circuit, over load and over voltage protections. Suitable for use in general medical or for industrial usage that require low leakage current, general electronic applications and low profile IT equipment these on-board type PSU's can be applied on the main control PCB of the final systems.
